VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Stuart, FL | TruePane Windows & Doors

The VLX 100 Double Swing / French Door is a paired aluminum door system built for Florida living. It opens wide with symmetrical sightlines, sits on a flush threshold that removes the step-up trip hazard, and locks with multi-point hardware that anchors both panels. We’re seeing these go into Stuart ranch homes, riverfront properties along the St. Lucie, and newer builds in Rocky Point and North River Shores. TruePane Windows & Doors is an authorized ViewLux installation partner in Stuart, which means you get the product warranty intact and an install crew that knows how this door needs to be set. Call (754) 324-4646 to talk specs or schedule a measurement.

Call (754) 324-4646

Product Overview - VLX 100 Double Swing / French Door

French doors have a reputation problem in Florida. The old wood versions swell, stick, and leak. The VLX 100 solves that with aluminum construction that holds its shape through Stuart’s humid summers and storm seasons. Both panels swing, which is what makes a French door a French door, but unlike older designs, this system keeps the sightlines clean. The frames are narrow enough that you see glass first and metal second.

Architecturally, this door fits where you want an opening that feels like a wall of light. We’ve installed them between living rooms and lanais in Sewall’s Point, between kitchens and pool decks in Palm City, and as front entries on modern farmhouse builds in Stuart proper. What people keep asking for is a door that doesn’t feel industrial. The VLX 100 gets there with the flush threshold. There’s no raised track to catch your foot, no saddle to break the line between indoors and out. It works for aging-in-place renovations and for families wheeling strollers or coolers across.

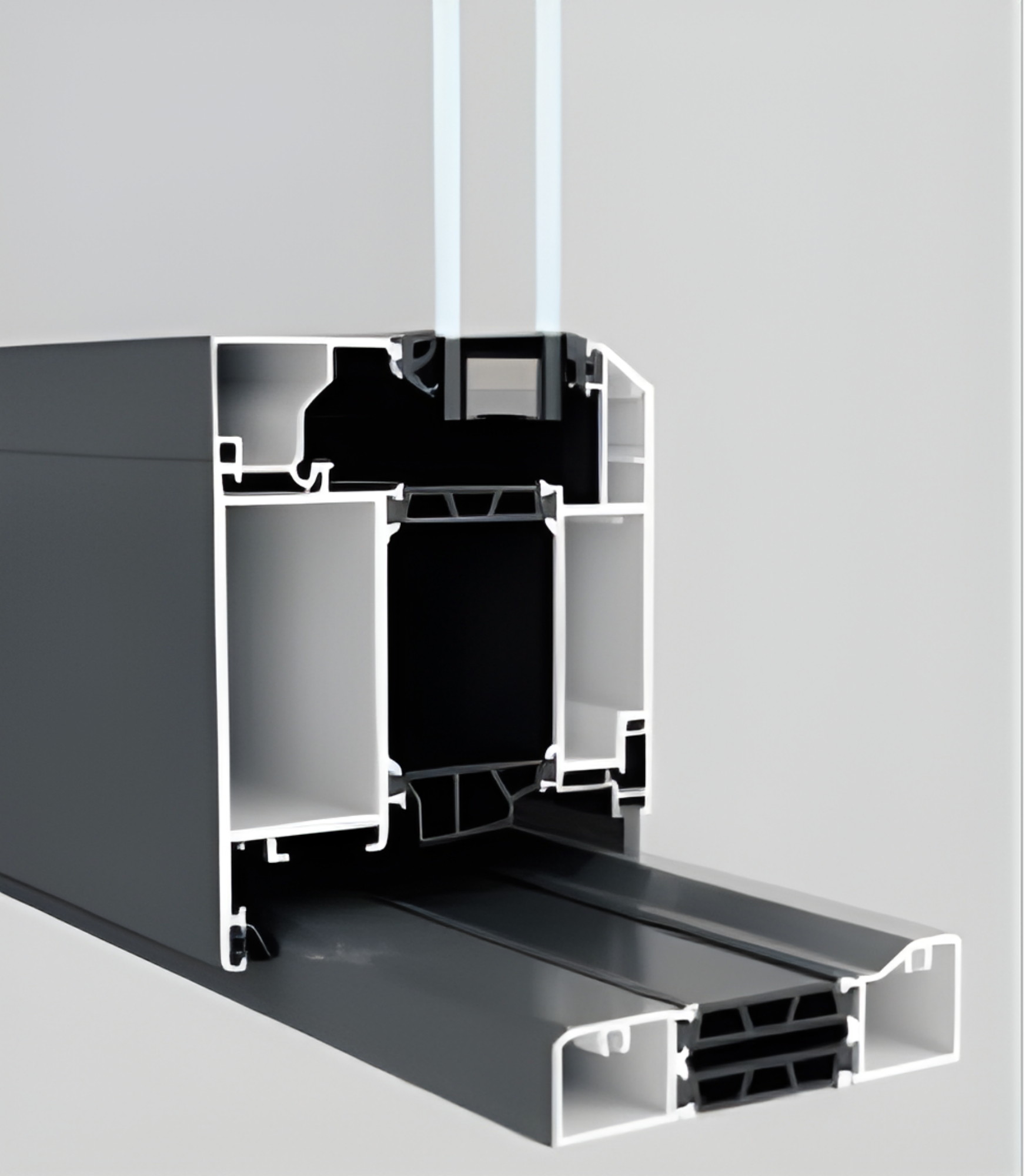

The engineering underneath is what matters in this climate. The aluminum is extruded with a wall thickness of .098 inches, which gives the frame real rigidity without the bulk of older commercial systems. The profile measures 2.56 inches across. That’s the sweet spot for strength and aesthetics. And the multi-point lock hardware isn’t a cosmetic feature. It engages at multiple points along the panel, which keeps the doors sealed against wind pressure and makes the lock harder to defeat than a standard single-point latch.

When you buy a ViewLux product, the installation partner determines how it actually performs. We’re the ones in Stuart who set it level, plumb, and square, and we’re the ones who stand behind the result.

Technical Specifications

Here’s what the VLX 100 Double Swing / French Door brings on paper. We’ve reworded the factory specs so they make sense in the context of real homes along the Treasure Coast.

• Frame wall thickness: 0.098 inches. This is the gauge of the aluminum extrusion itself, and it’s what gives the door its resistance to racking and twisting over time.
• Profile width: 2.56 inches. A slim frame that still carries the structural load of two swinging panels.
• Maximum span: Up to 96 inches wide total. That covers most double-door rough openings in Stuart homes without needing to resize the wall.
• Glass types: Clear, frosted, obscure, Low-E, tempered, and laminated. Laminated is the one we point Stuart buyers toward when impact resistance matters.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. All are factory-applied and rated for coastal exposure.
• Screen options: Retractable screen or no screen. The retractable keeps the sightlines clean when it’s stowed.
• Thermal rating: NFRC-rated thermal break technology in the frame, which is what separates this from older non-thermally broken aluminum.
• Installation standard: Installed to AAMA 2400/2410. We don’t treat that as optional.

Performance Features

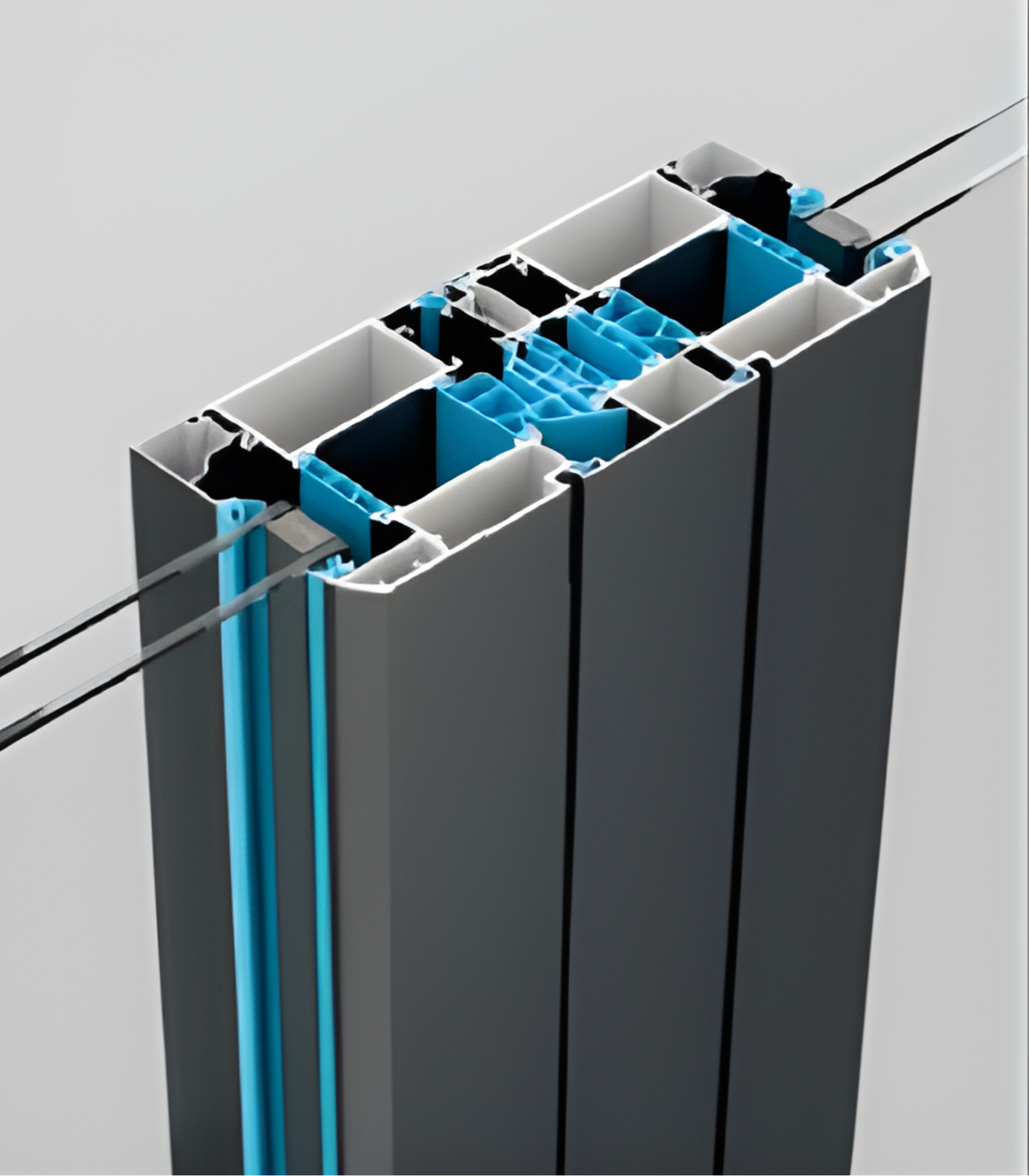

Thermal Efficiency - The VLX 100 uses thermal break technology in the frame, which means the inside and outside aluminum are separated by a non-conductive material. That’s what gives it an NFRC-rated energy performance rather than a guess. In Stuart, where air conditioning runs nine months of the year, a thermally broken aluminum door performs materially better than a hollow aluminum frame. It also reduces condensation on the interior face during the humid months.

Acoustic Performance - If your Stuart home faces a busy street, A1A traffic, or railroad crossings, the sound control ratings on this door matter. The combination of the frame’s air seal and the laminated glass option cuts mid-range noise noticeably. We’ve had buyers in North River Shores test the difference and describe it as closing a window you didn’t know was open.

Airtightness & Weather Seal - Air leakage is where cheaper French doors fail in Florida. Wind-driven rain and humid air find the gaps around the panels. The VLX 100’s multi-point lock pulls both panels tight against the perimeter gaskets, and our installation includes AAMA 812 low-expansion foam sealant on every perimeter joint. That foam is rated specifically for window and door openings. It expands to fill voids, but it won’t bow the frame like consumer-grade foam can.

Waterproofing - Stuart gets fifty-plus inches of rain in a normal year, and tropical systems bring it sideways. The VLX 100’s sill design and perimeter seals are engineered to keep water moving down and out, not in. On the install side, we flash and seal the rough opening so water that gets past the exterior finish still can’t reach the interior. This is where most warranty claims start, and it’s why we don’t cut corners on sill prep.

Wind Resistance - Wind-load rating matters on the Treasure Coast. The VLX 100 is rated for local wind-load requirements, and with laminated impact glass, the assembly is designed to handle wind-borne debris without a full shutter system. For Stuart homes in wind-borne debris zones, that’s a real practical difference. It doesn’t mean you skip shutters if your insurer requires them, but it does change what the door itself can take.

Security & Hardware - The multi-point lock hardware engages at the top, bottom, and middle of the door in a single turn. That’s three points of contact instead of one, and it changes how the door behaves under force. Laminated glass adds another layer, because it holds together when struck instead of shattering into an opening. We recommend it for French doors on rear elevations and pool doors, which is where most break-ins and most accidental impacts happen in Stuart.

Color & Glass Options

The VLX 100 comes in six factory finishes. Premium Black is the one we order most for Stuart’s newer modern builds and renovated mid-century homes, because it frames the glass like a picture frame. Pure White suits the coastal and Key West style homes on the water, and it holds up better against salt exposure than any painted white wood frame ever will. Anodized Silver is the architectural choice for commercial-style glass walls and clean contemporary elevations. Bronze reads warm and traditional, fitting South Florida ranches and homes with natural stone or brick. Champagne splits the difference between silver and bronze, with a soft warmth that works on stucco. Teak Wood gives you the look of wood-grain at the frame without any of the swelling or repainting, and it’s a favorite on homes where the HOA won’t allow painted aluminum but the homeowner hates stark metal.

On the glass side: clear is the default, frosted and obscure give you privacy without losing light, which works for bathrooms or entries that face a neighbor’s window. Low-E is a coating that reflects heat while keeping visibility, and we recommend it on any west-facing door in Stuart. Tempered glass is safety glass, required by code in doors and adjacent panels. Laminated is the upgrade that adds impact resistance. The two are not the same thing, and we’ll help you pick the right combination for your elevation and your exposure.

Installation by TruePane Windows & Doors in Stuart

A door like the VLX 100 doesn’t forgive sloppy installation. We start every project with a pre-install inspection of the rough opening. If the opening is out of square, we find out before the door arrives, not after it’s been set. That single step prevents more problems than any other part of the job.

When we set the door, we check level, plumb, and square at multiple points. An aluminum French door that’s racked even slightly will bind at the hinges, leak at the corners, and fail the warranty inspection. We don’t shim it until it looks right. We shim it until it measures right.

Every perimeter joint gets AAMA 812 low-expansion foam sealant. That’s the standard ViewLux expects, and it’s the standard we hold ourselves to on every install in Stuart and throughout Martin County. We install to AAMA 2400/2410, which covers the full system: flashing, shimming, anchoring, sealant, and water management. It’s not something every contractor in Stuart works to, but it’s how we do every door we touch.

Florida’s building code and our coastal wind zones add another layer. We’re familiar with what Martin County inspectors look for on door replacements, and we pull permits when the job requires it. After the door is set and anchored, we run a final water test on the sill and check both panels through their full swing. Then we clean the glass, haul the old door away, and walk you through lock operation and maintenance.

One thing most homeowners don’t know until it’s too late: an improper installation voids the manufacturer warranty. You can buy the best door on the market, have it set wrong, and the factory will not cover the failure. That’s why buying through an authorized ViewLux partner like TruePane Windows & Doors matters. The product warranty, the workmanship warranty, and the performance of the door all depend on who puts it in.

Frequently Asked Questions - VLX 100 Double Swing / French Door

Get a Quote - VLX 100 Double Swing / French Door in Stuart

If you’re pricing a French door replacement or planning new construction in Stuart, start with a real number, not a website guesstimate. We’ll come to your home, measure the opening, review finish and glass options, and give you a written line-item quote. No pressure, no change orders later. Call TruePane Windows & Doors at (754) 324-4646 to schedule your free measurement and get your VLX 100 project started.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Stuart, FL and Martin County.
