The VLX 150 Heavy-Duty Sliding Door is a large-span aluminum slider built for homeowners in Stuart, FL who want wide, uninterrupted glass without compromising structural integrity. With a maximum span of 24 feet, multi-track configurations, and stainless steel hardware throughout, this series handles openings that lesser doors simply can’t. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get the manufacturer’s full warranty protection plus an installation crew that works to AAMA 2400/2410 standards. For pricing and availability in Martin County, call (754) 324-4646.

Call (754) 324-4646

Product Overview – VLX 150 Heavy-Duty Sliding Door

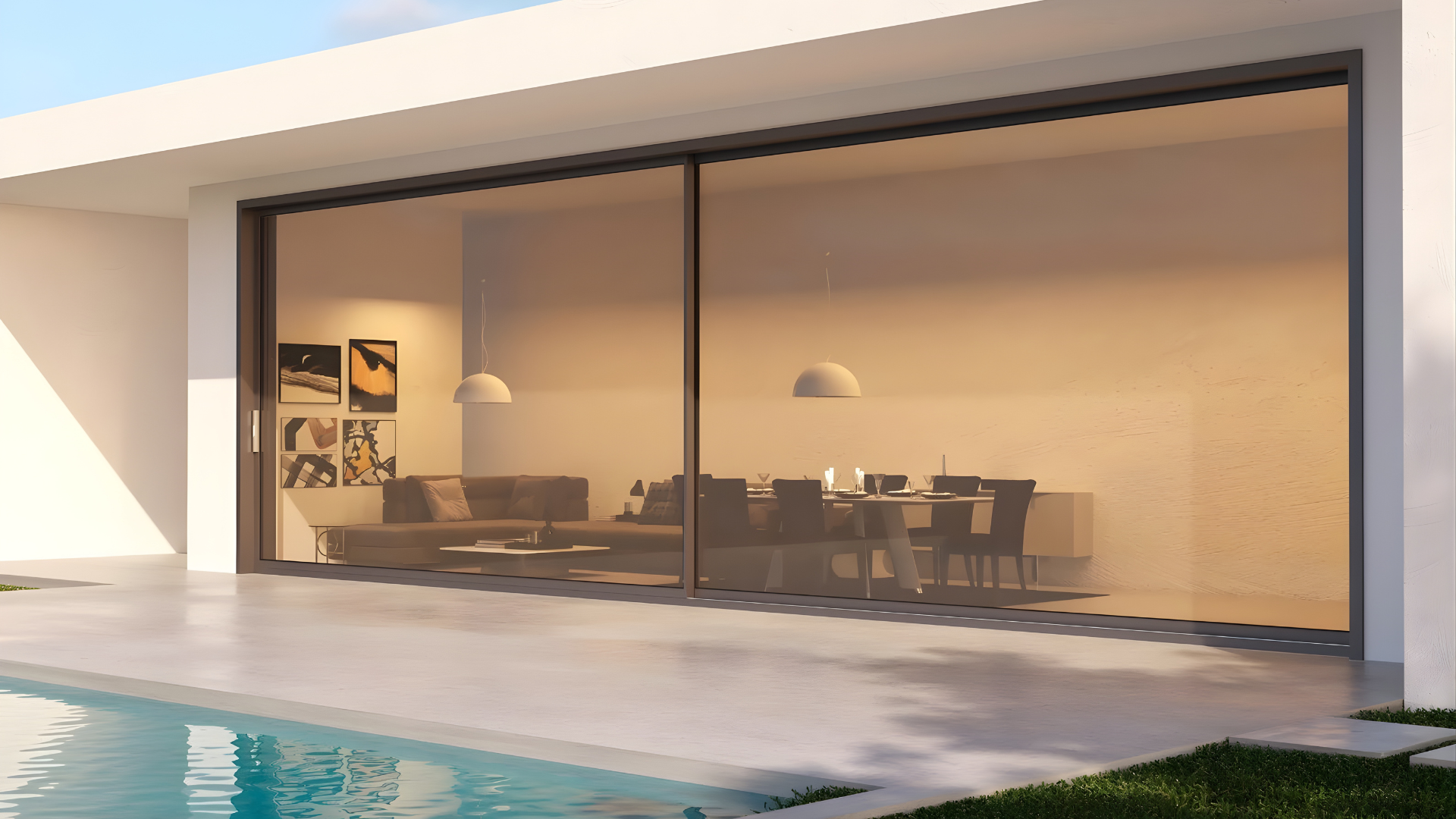

The VLX 150 exists for one reason: strength at scale. Many sliding doors on the market max out around 12 or 16 feet. The VLX 150 pushes that boundary to 24 feet, which changes what’s architecturally possible in a Stuart home. You’re no longer choosing between a sliding door and a wall of glass. You get both.

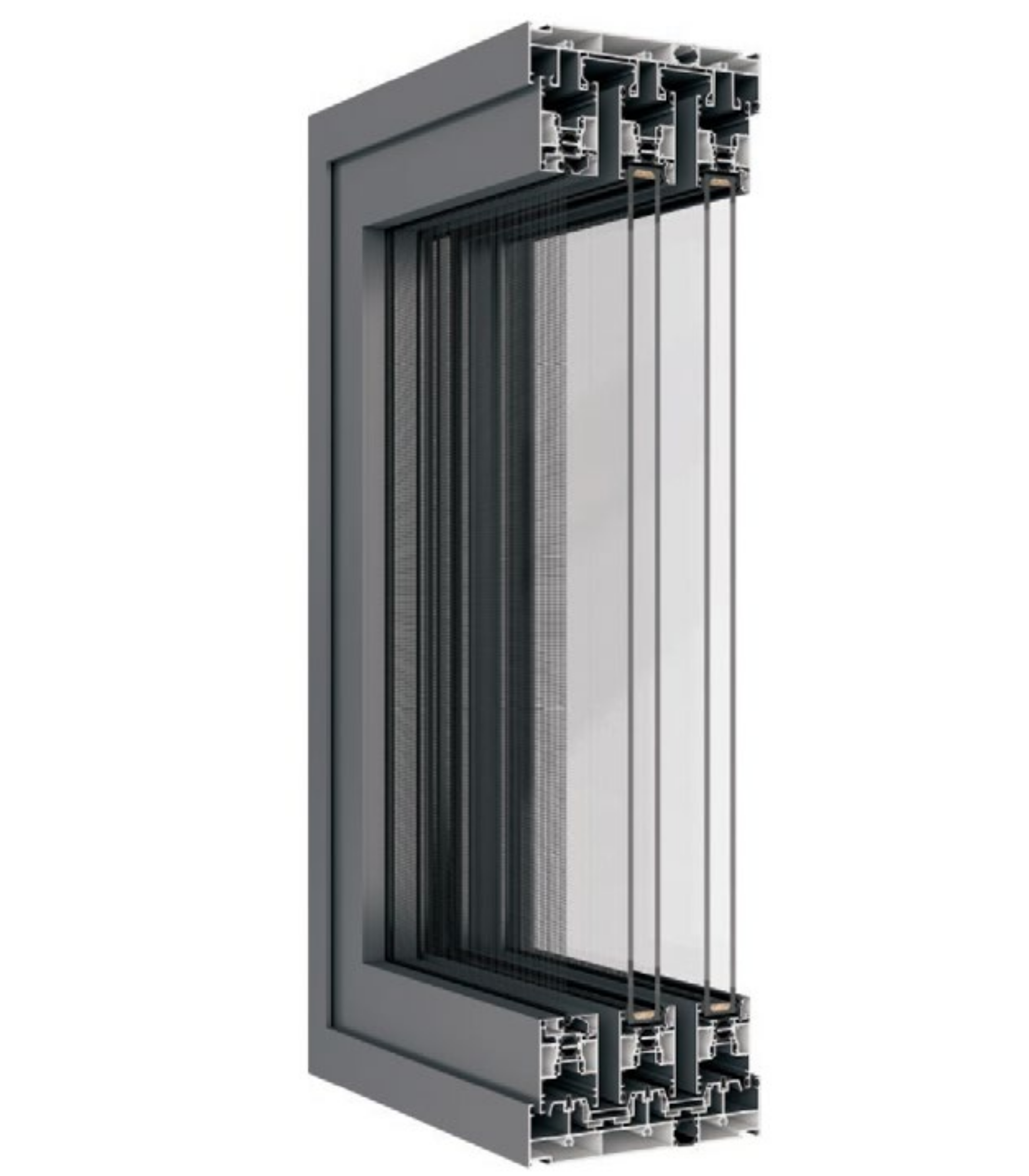

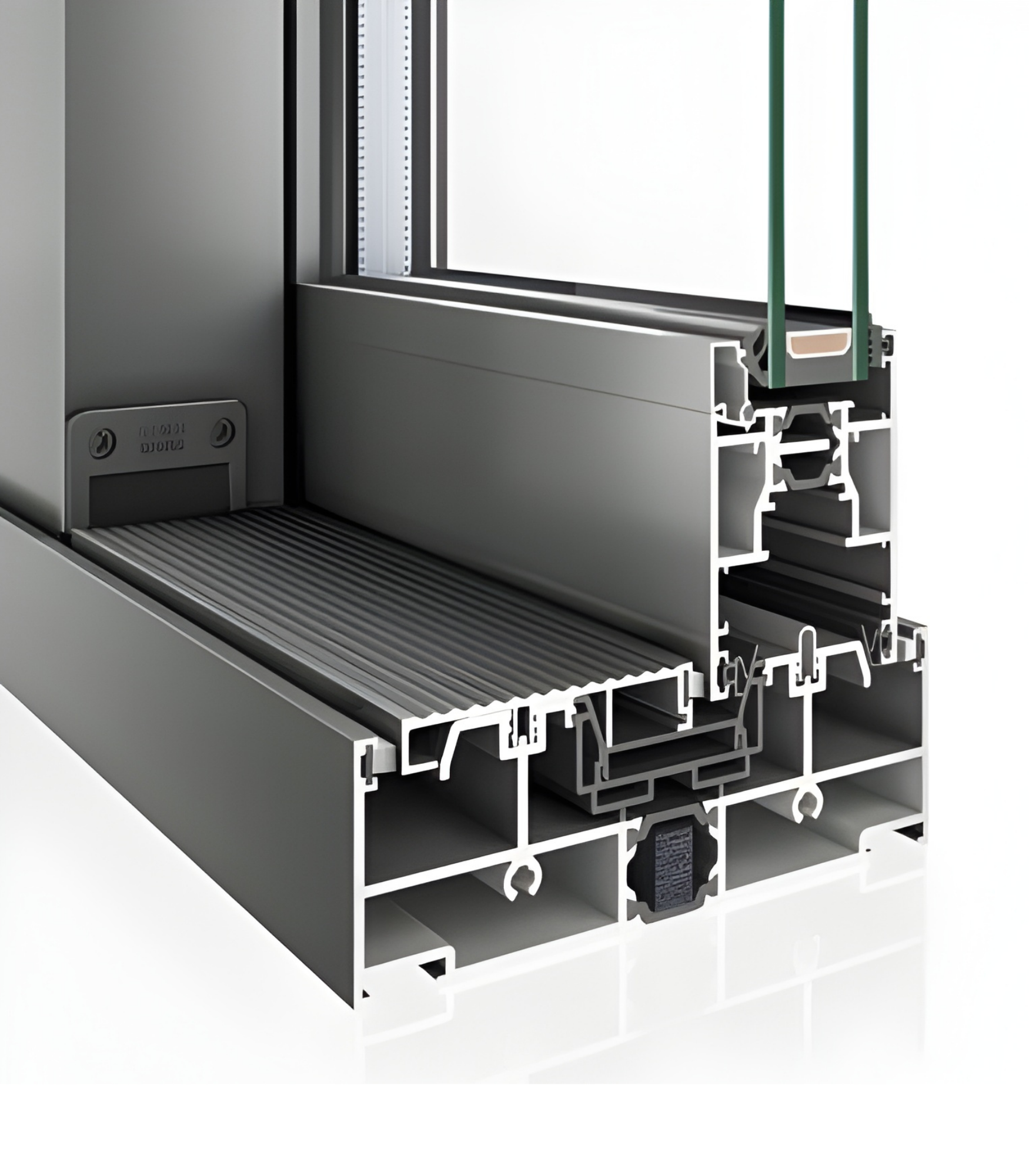

The engineering starts with the aluminum profile. At 0.118 inches, the wall thickness is meaningfully heavier than entry-level systems. The profile itself measures 2.95 inches wide, giving the frame enough mass to resist racking, bowing, and the kind of deflection that makes cheaper sliders bind over time. That’s a real concern in coastal Florida, where heat, humidity, and storm-driven winds punish underbuilt frames.

The hardware tells the same story. ViewLux specs stainless steel rollers, tracks, and locking mechanisms on this series. Stainless isn’t a marketing detail here. In Stuart’s salt-air environment, plated or coated hardware eventually corrodes. Stainless holds up. The multi-track configurations (2-track, 3-track, or 4-track) let you configure the door as a fixed panel with sliding units, a fully operable system, or anything between. For a waterfront condo on the St. Lucie River or a single-family home in Palm City, that flexibility matters during both design and daily use.

TruePane Windows & Doors carries this product because we’ve installed enough sliding doors in Stuart to know what fails. The VLX 150 addresses those failure points at the material level. That’s why we recommend it for high-use openings, large spans, and any project where the door is a focal point rather than an afterthought.

Technical Specifications

• Frame material: Extruded aluminum with a 0.118-inch wall thickness
• Profile width: 2.95 inches
• Maximum span: Up to 24 feet wide
• Track configurations: 2-track, 3-track, 4-track
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, Sliding Screen
• Thermal performance: NFRC-rated with thermal break technology
• Installation standard: AAMA 2400/2410 compliant
• Perimeter sealing: AAMA 812 low-expansion foam sealant
• Impact resistance: Available with impact-rated laminated glass

Performance Features

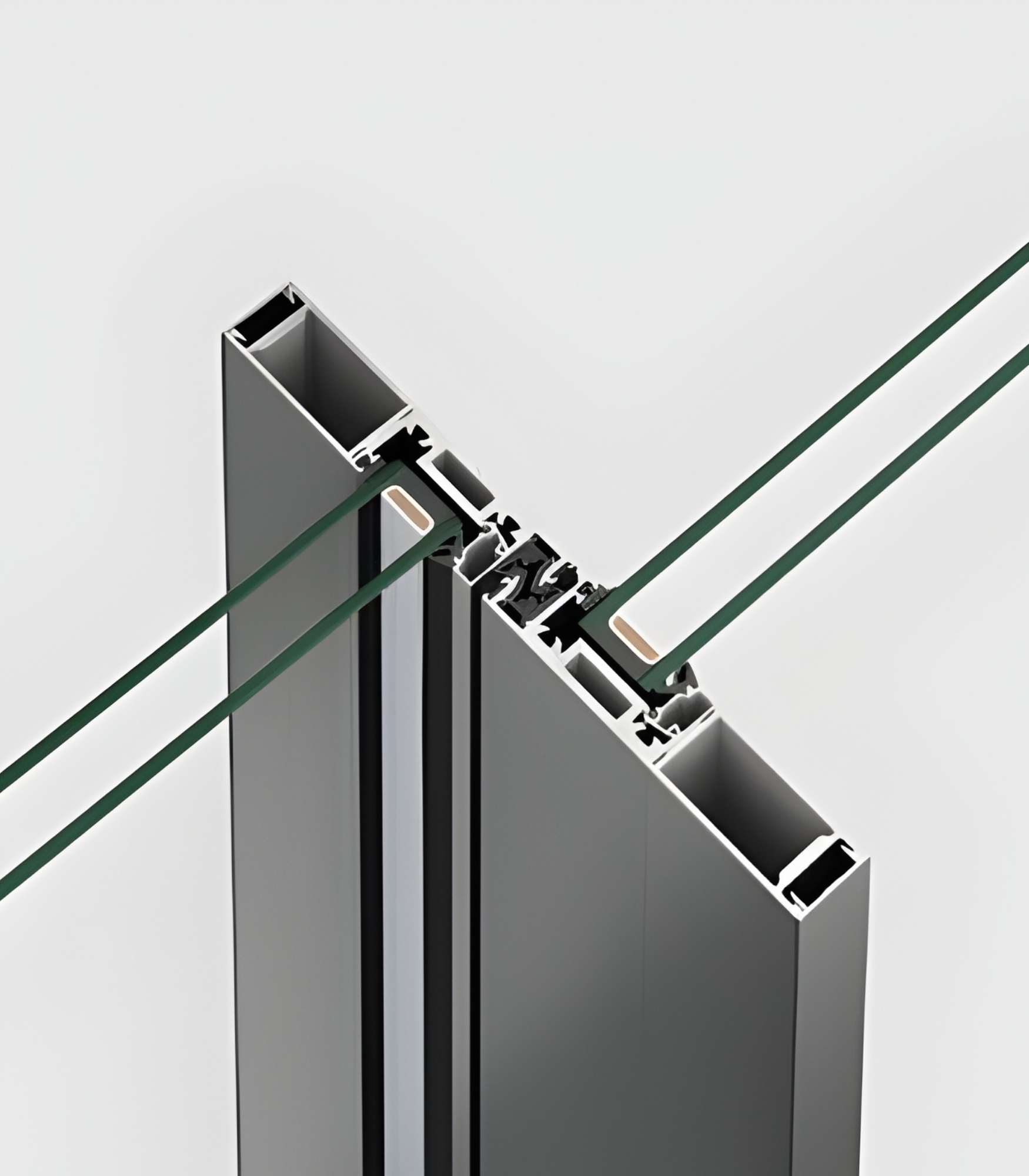

Thermal Efficiency – The VLX 150 uses a thermal break built into the aluminum frame, which separates the interior and exterior metal surfaces. That break slows heat transfer dramatically compared to non-thermal aluminum. In a Stuart summer, that means less radiant heat bleeding through the frame itself, lower cooling loads, and an NFRC-rated energy profile you can actually verify.

Acoustic Performance – If you live near US-1 or Dixie Highway in Stuart, traffic noise is a daily reality. Laminated glass, available as an option on the VLX 150, reduces sound transmission significantly more than standard tempered glass. The multi-point locking system also keeps panels seated tightly, which minimizes the vibration and rattling that generates noise on cheaper sliders.

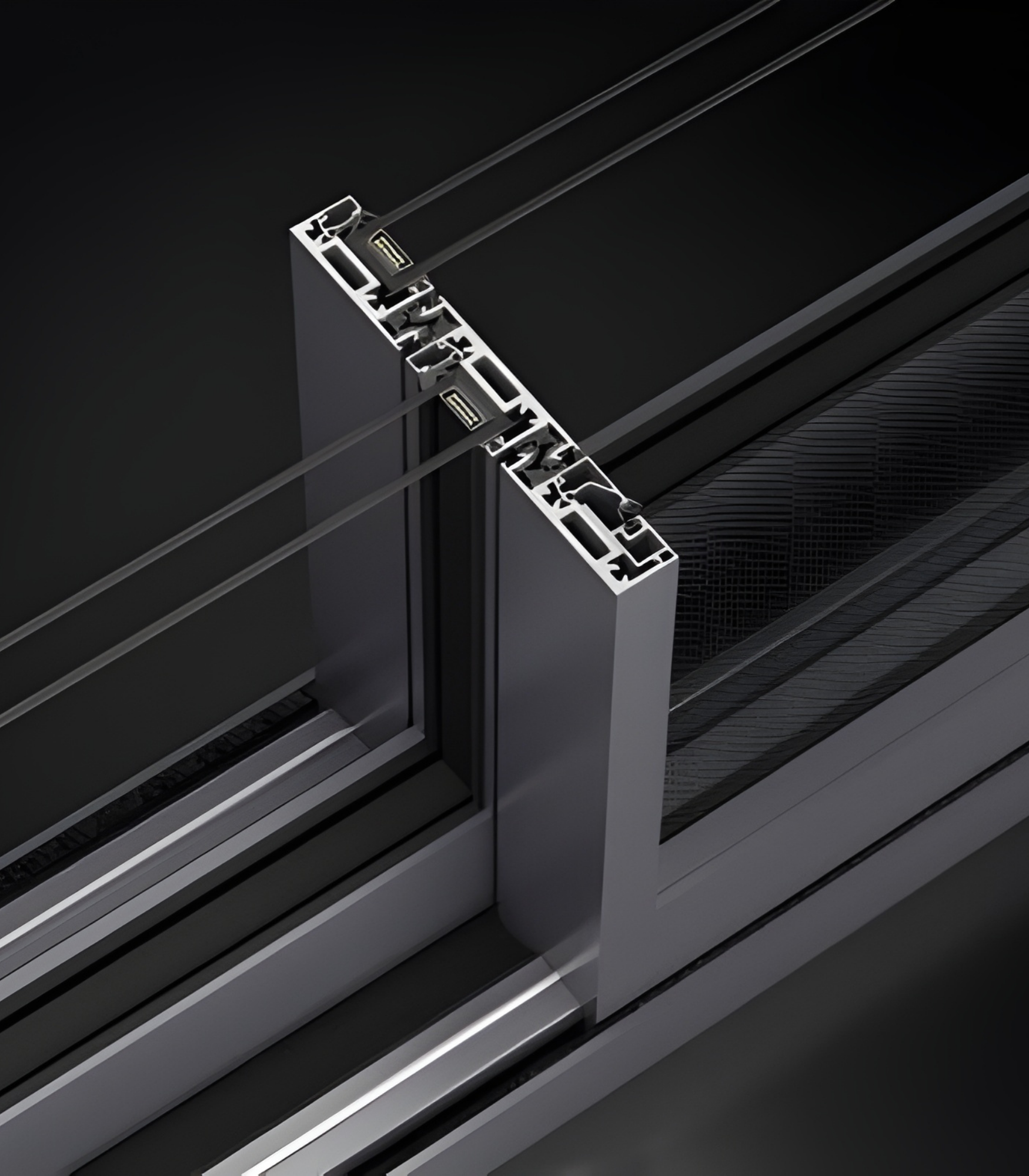

Airtightness & Weather Seal – The door’s gasketing system creates a continuous seal at the header, sill, and interlock points. This isn’t a single strip of felt. It’s a layered system of compression seals and interlocking stiles designed to stop air infiltration. Air leaks account for a surprising share of HVAC loss in Florida homes, and this door is built to close that gap.

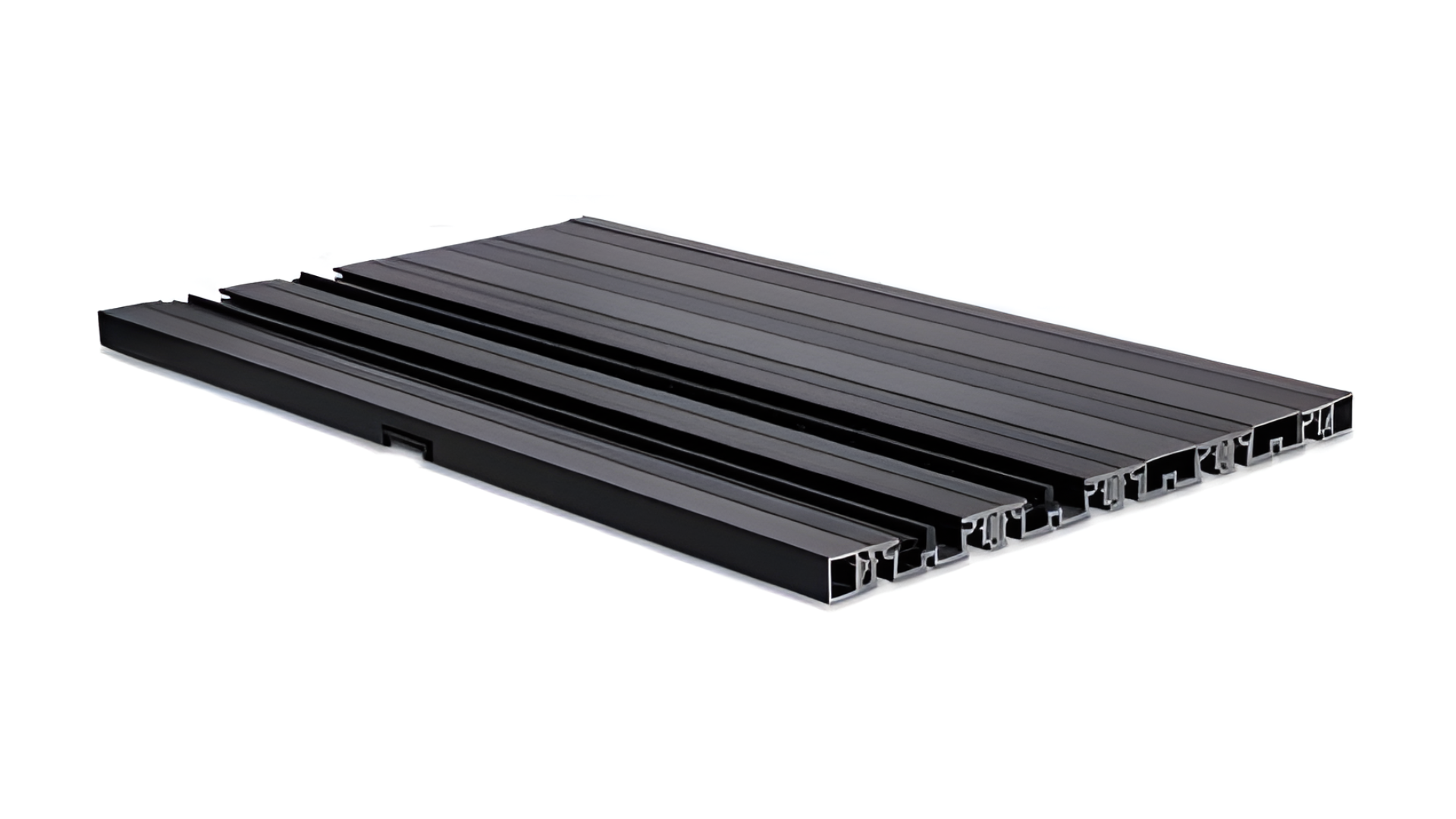

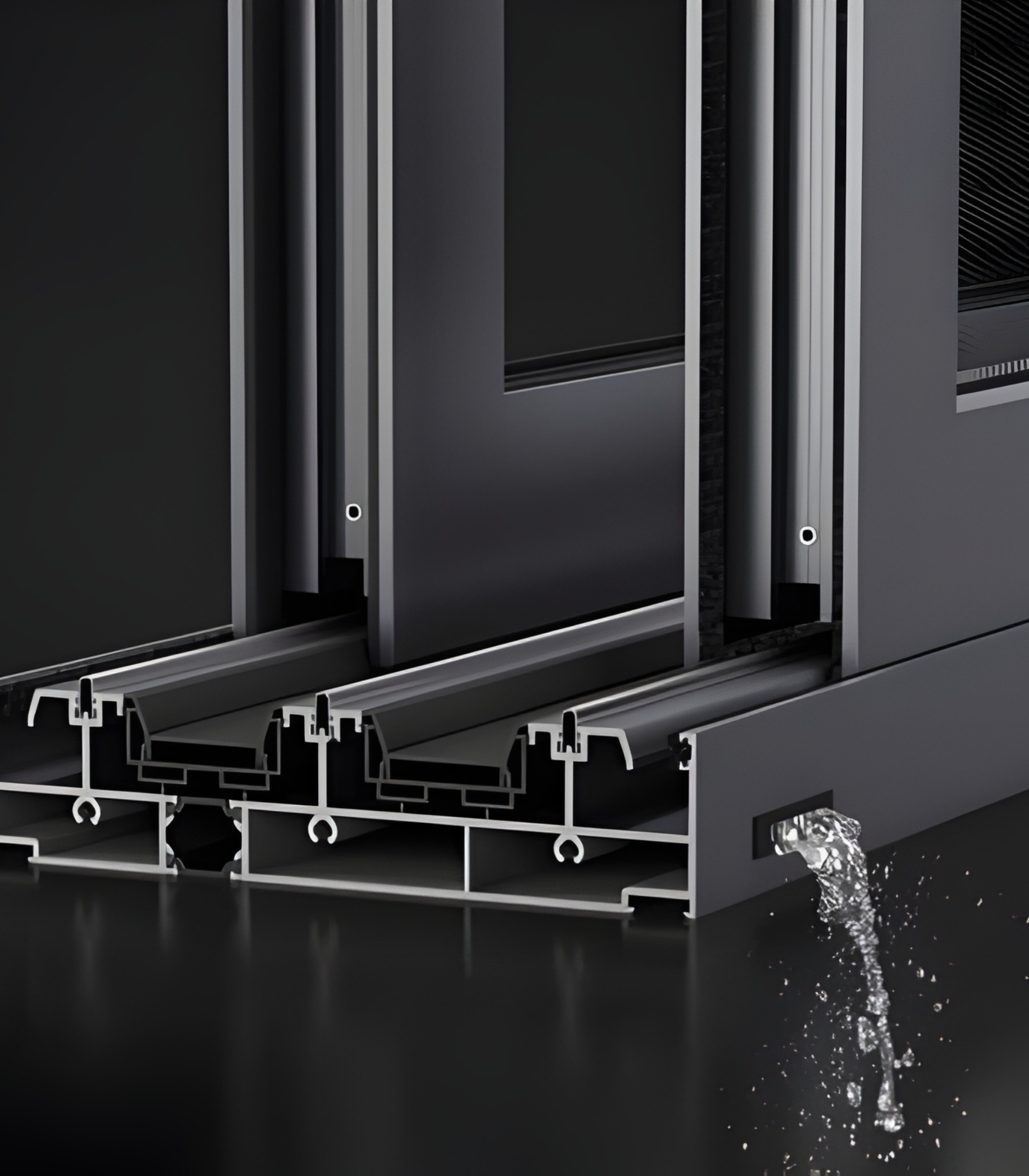

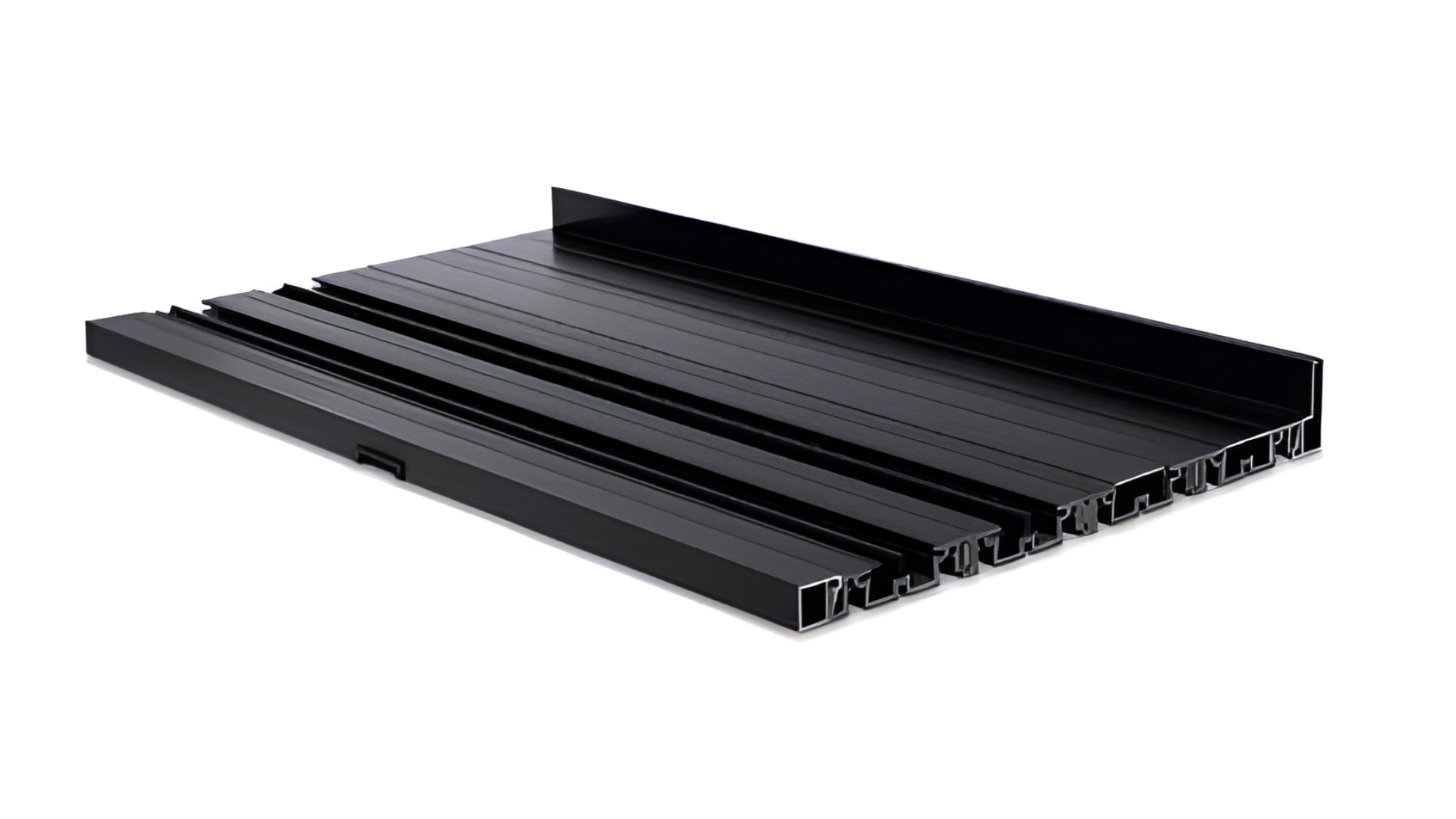

Waterproofing – Sill design matters more than most people realize. The VLX 150 uses a raised interlocking sill profile that channels water outward and away from the home. Combined with the AAMA 812 foam perimeter seal that TruePane Windows & Doors applies at installation, the system is designed to keep driving rain out even during a Stuart afternoon downpour.

Wind Resistance – Sliding doors are the largest openings in most homes, which makes them the most vulnerable point in a wind event. The VLX 150 is wind-load rated for the coastal climate requirements we deal with in Martin County. Paired with impact-resistant laminated glass, this system is suited for homes where code compliance and storm protection are non-negotiable.

Security & Hardware – Stainless steel rollers and tracks resist corrosion and keep operation smooth for years. The locking system engages at multiple points along the interlock, not just at a single latch. For a ground-floor door or a door opening onto a pool deck in Stuart, that multi-point engagement is a meaningful security feature, not a checkbox.

Color & Glass Options

The VLX 150 comes in six finishes, which gives you real design flexibility rather than a choice between black and white. Premium Black suits modern and transitional homes, especially those with black window frames elsewhere on the facade. Pure White works beautifully for Key West style and coastal cottages around Stuart. Anodized Silver is the classic aluminum look, clean and low-maintenance. Bronze reads heavier and more traditional, pairing well with Mediterranean or Old Florida architecture. Champagne splits the difference between silver and bronze, a warmer neutral that works on stucco homes. Teak Wood offers a wood-grain appearance without the upkeep of real timber, which matters in Stuart’s humidity.

Glass selection follows function. Clear is the budget-friendly baseline. Low-E adds a microscopic coating that reflects heat while staying transparent, ideal for west-facing exposures. Tempered is required by code for safety glazing in doors, so it’s standard on operable panels. Laminated adds impact resistance and noise reduction. Gray Tint and Black Tint reduce glare and solar gain, which can be smart for east-facing openings that catch morning sun over the Atlantic.

Installation by TruePane Windows & Doors in Stuart

Manufacturer warranty coverage depends almost entirely on installation quality. A sliding door that’s set out of square or slightly off-level will wear hardware prematurely, leak at the corners, and eventually bind. ViewLux’s warranty assumes a proper installation. That’s why TruePane Windows & Doors follows the AAMA 2400/2410 installation standard on every VLX 150 we put in a Stuart home.

Our process starts with a pre-install inspection. We measure the rough opening, check the substrate condition, and verify that the surrounding framing can support a door of this size and weight. If there’s rot, water damage, or shimming issues, we address them before the door ever comes off the truck.

Then we set the frame level, plumb, and square. Those three words get used loosely in this trade, but they’re measurable on every axis, and we don’t skip the checks. A 24-foot door demands precision. We then apply AAMA 812 low-expansion foam sealant around the perimeter and set the frame into place. The foam seals the gap between structure and frame, blocking air and water intrusion at the rough opening. Flashing, sill pan, and trim complete the weather envelope.

After the panels are hanging and the hardware adjusted, we run a water test and operate the door through its full travel multiple times. In Stuart, where afternoon thunderstorms are routine, we don’t consider an installation complete until we’re confident water can’t find a path inside. We also pull any required permits and stand behind the work with a workmanship warranty on top of the manufacturer’s coverage.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door? Lead times vary based on size, glass selection, and finish. Custom-sized VLX 150 doors are built to order and typically ship within 4 to 8 weeks from the manufacturer. TruePane Windows & Doors handles the ordering, freight coordination, and scheduling so you have a clear timeline before the project starts. Call (754) 324-4646 and we’ll give you a current estimate for your configuration.

Does the VLX 150 qualify for energy tax credits? The VLX 150 can qualify for energy tax credits when equipped with Low-E glass and configured to meet the applicable NFRC performance thresholds for Zone 1 (South Florida). Qualification depends on the specific U-factor and solar heat gain coefficient of your configuration. TruePane Windows & Doors can confirm eligibility for your build before you commit to glass options. Call (754) 324-4646 to run the numbers.

What warranty comes with the Heavy-Duty Sliding Door? The VLX 150 carries a manufacturer’s warranty from ViewLux covering the frame, hardware, and insulated glass units. The warranty is only valid when the door is installed by an authorized partner following AAMA standards, which is exactly how TruePane Windows & Doors installs every unit. Our workmanship warranty adds coverage on top of the manufacturer’s terms. Ask us for the full warranty document at your free estimate.

Can I customize the size? Yes. The VLX 150 is built to the dimensions of your opening, up to a 24-foot maximum span. Track configuration (2, 3, or 4 track), panel count, glass type, finish, and screen options are all selected per project. A door for a 16-foot opening in Sewall’s Point will be configured differently than a 24-foot span in Rocky Point, and that customization is standard with this series.

How do I maintain aluminum frames? Aluminum frames need minimal maintenance in Stuart’s climate. Wash the frame and glass with mild soap and water two to three times per year, clean the track to keep debris out of the roller path, and inspect the weep holes at the sill to keep drainage clear. Avoid harsh solvents that can damage the finish. If the door ever starts sliding hard or binding, call TruePane Windows & Doors before forcing it; roller adjustments and replacements are inexpensive compared to the damage an ignored problem can cause. Reach us at (754) 324-4646.

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Stuart

If you’re planning a sliding door replacement, a new build, or a remodel in Stuart or anywhere in Martin County, start with an accurate quote. TruePane Windows & Doors offers free on-site measurements, written line-item pricing, and honest guidance on glass, finish, and track configuration. Call (754) 324-4646 to schedule your free estimate and see what the VLX 150 can do for your home.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Stuart, FL and Martin County.
